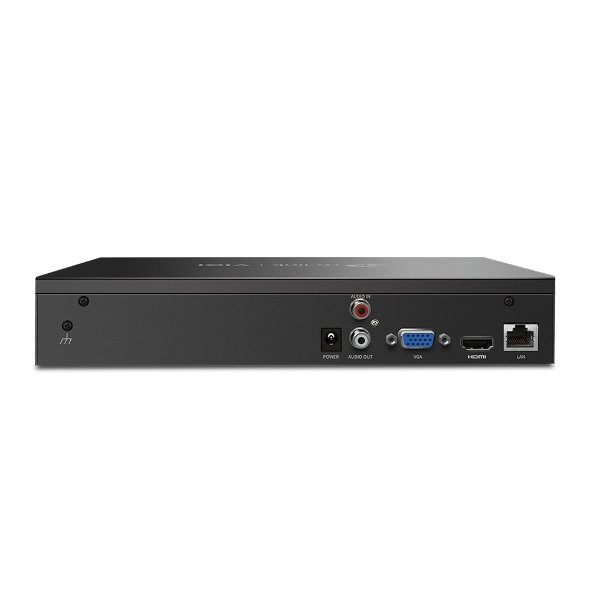

TP-LINK VIGI NVR1016H 16 Channel Network Video Recorder


16 Channel Network Video Recorder SPEC: H.265+/H.265/H.264+/H.264, Up to 5MP resolution, 80 Mbps Incoming Bandwidth(up to 16 channels), 1× SATA Interface(up to 10 TB), 12V DC 1.5 A, 2× USB 2.0, 1× VGA port, 1× HDMI port FEATURE: Two-Way Audio, Simultaneous Playback, Streamlined Setup, ONVIF, Remote Monitoring, VIGI App

หมวดหมู่ : IP Camera & ThemoScan & Drone TP-LINK

แบรนด์ : TP-LINK


  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
  • Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
  • Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

Incoming Bandwith80 Mbps
Outgoing Bandwidth60 Mbps
Operating Temperature-10–55 °C
Dimensions( H X W X D )246.2 × 148.2 × 45 mm
Weight578.5 g
External Power Supply12V DC/1.5 A
Power Consumption4.25 W (without disk)
13.10 W (with disk)
Video Input16-Channel IP Video Input, up to 8 MP Resolution
Video OutputRecording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
Decoding FormatH.265+/H.265/ H.264+/H.264
Live View/Playback Resolution8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
Capability1-ch @ 8 MP, 2-ch @ 4 MP, 4-ch @ 2 MP
SATA1 SATA Interface
CapacityUp to 10 TB
Network Interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0
