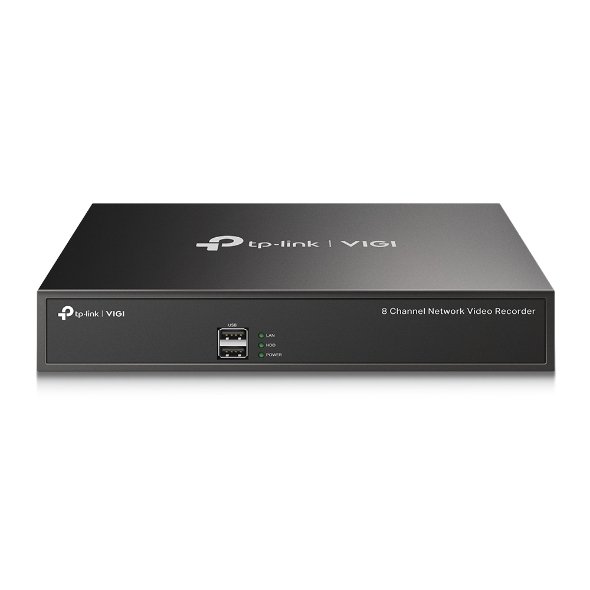

TP-LINK VIGI NVR1008H 8 Channel Network Video Recorder

คุณสมบัติสินค้า:

8 Channel Network Video Recorder SPEC: H.265+/H.265/H.264+/H.264, Up to 5MP resolution, 80 Mbps Incoming Bandwidth(up to 8 channels), 1× SATA Interface(up to 10 TB), 12V DC 1.5 A, 2× USB 2.0, 1× VGA port, 1× HDMI port FEATURE: Two-Way Audio, Simultaneous Playback, Streamlined Setup, ONVIF, Remote Monitoring, VIGI App

หมวดหมู่ : IP Camera & ThemoScan & Drone TP-LINK

แบรนด์ : TP-LINK

Share

  • 24/7 Continuous Recording: Automatically stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
    8-Channel Real-Time Live View: Sharp image definition up to 5MP and an 8 channel display ensures you capture every detail, from every angle.
    Simultaneous Playback: Replay the feed from up to 4 cameras† at the same time, increase replay speed, and find events in the video schedule to easily review footage.
    Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
    H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
    ONVIF Ensure Compatibility**: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
    1 HDD Interface (up to 10 TB)△: Stores up to 10 TB (720 days* of video) on a SATA hard drive, keeping your data storage secured locally.
    Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
    80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR connects more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can connect up to eight 4MP cameras.
NETWORK
ProtocolTCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith80 Mbps
Outgoing Bandwidth60 Mbps
GENERAL
Package ContentsVIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Quick Installation Guide
Operating Temperature-10–55 °C
Dimensions( H X W X D )246.2 × 148.2 × 45 mm
Weight578.5 g
External Power Supply12V DC, no more than 18 W
Power Consumption4.25 W (without disk)
13.10 W (with disk)
VIDEO/IMAGE
Video Input8-Channel IP Video Input, up to 5 MP Resolution
Video OutputRecording Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz
DECODING
Decoding FormatH.265+/H.265/ H.264+/H.264
Live View/Playback Resolution5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback4 Channel†
Capability1-ch @ 5MP, 2-ch @ 2MP, 4-ch @ 720p
HARD DISK
SATA1 SATA Interface
CapacityUp to 10 TB
INTERFACES
Network Interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0
