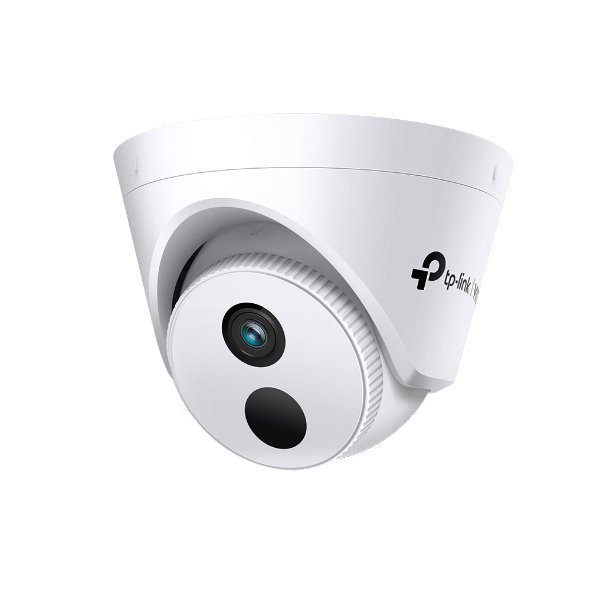

TP-LINK VIGI C400HP-4

คุณสมบัติสินค้า:

3MP Turret Network Camera SPEC: H.265+/H.265/H.264+/H.264, 1/2.7" Progressive Scan CMOS, Color/0.1 Lux@F2.4, 0 Lux with IR, 25fps/30fps (2304x1296, 2048x1280, 1920x1080, 1280x720), PoE/12V DC, Horizontal 92°, Vertical 48°, Diagonal 114°, 4 mm Fixed Lens FEATURE: Smart Detection (Motion Detection, Camera Tampering, Line-Crossing, Area Intrusion), SmartVid (Smart IR, WDR, 3D DNR, BLC), Night Vision (Up to 30 m), ONVIF, Remote Monitoring, VIGI App

หมวดหมู่ : IP Camera & ThemoScan & Drone TP-LINK

แบรนด์ : TP-LINK

Share

  • 3MP Ultra-High Definition: The VIGI C400 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 4mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C400 comes with two different lens versions to better suit your security needs.
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
  • Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
  • WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
  • 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
  • Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
  • VIGI App: Manage your security from the palm of your hand with the VIGI app.



NETWORK
SecurityPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ProtocolTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
APIONVIF
Simultaneous Live View4 Main Streams & 3 Sub-Streams,

GENERAL
Package ContentsVIGI Network Camera
Quick Start Guide
Screws and Anchors
Mounting Template
CertificationsCE, FCC, RCM, BSMI, VCCI, RoHS
Dimensions( H X W X D )123 × 123 × 83 mm
MaterialPlastic
Weight195 g
General FeaturesTwo Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Power Requirements12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
CAMERA
Image Sensor1/2.7” Progressive Scan CMOS
Lens4 mm
Aperture4 mm: F2.4
Lens MountM12
Viewing Angle4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°
Day/Night MechanismIR Cut Filter
IR Working Distance30m
Minimum IlluminationColor: 0.1 Lux@F2.0; 0 Lux with IR
Pan/Tilt RangePan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction3D DNR
WDRDWDR
VIDEO/IMAGE
Video CompressionMain stream: H.265/H.264
Sub-Stream: H.265/H.264
Frame Rate & ResolutionsFrame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240
Image SettingsMirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
Image EnhancementBLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate64 Kbps to 6 Mbps
SMART FEATURE-SET
Smart EventArea Intrusion Detection, Line-Crossing Detection
Basic EventMotion Detection, Video Tampering Detection, Exception ( illegal login)
Linkage MethodTrigger Notification: ONVIF, HTTPS
Region of Interest1 Region
INTERFACES
Network Interface1 RJ45 10/100M Self-Adaptive Ethernet Port
Button-
Video Output-
